Home Assistant Integration

[scarver]

It is Hard to follow.
And something went wrong in the yaml text.
???

[PeterD]

Hi scarcer,
Ich habe es kingekriegt. Wenn ich helfen kann melde dich gerne. Bin aber auch kein Home Assistant Nerd, aber die Rolladen laufen nun bei mir.

[scarver]

Now I could fix it.

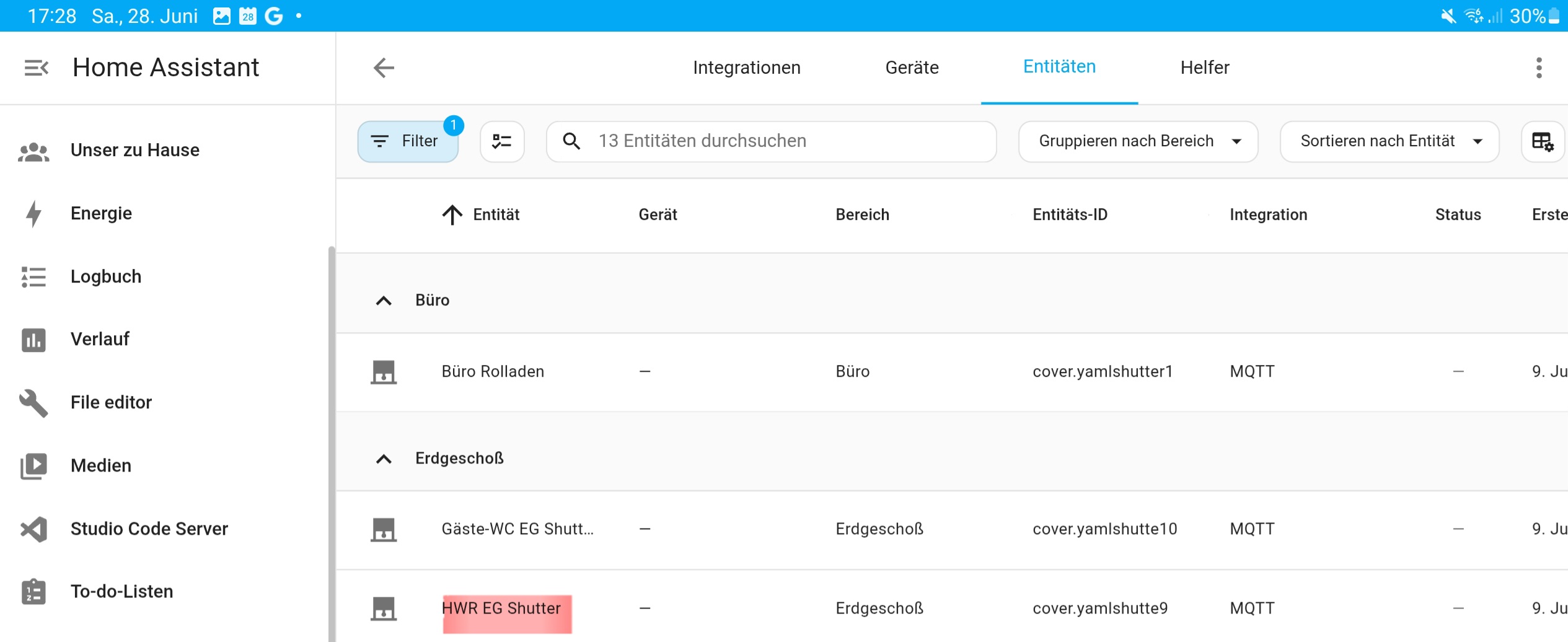

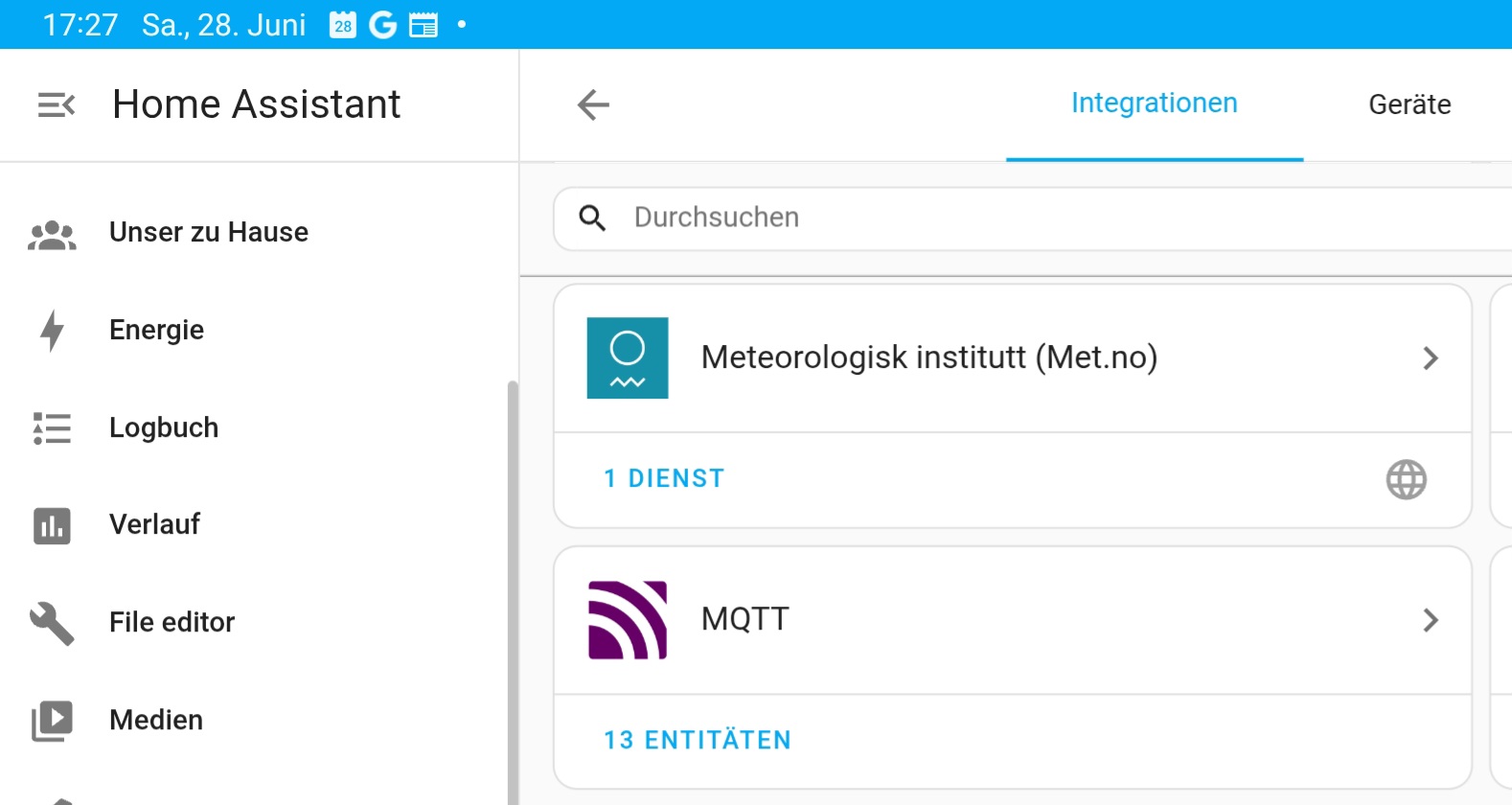

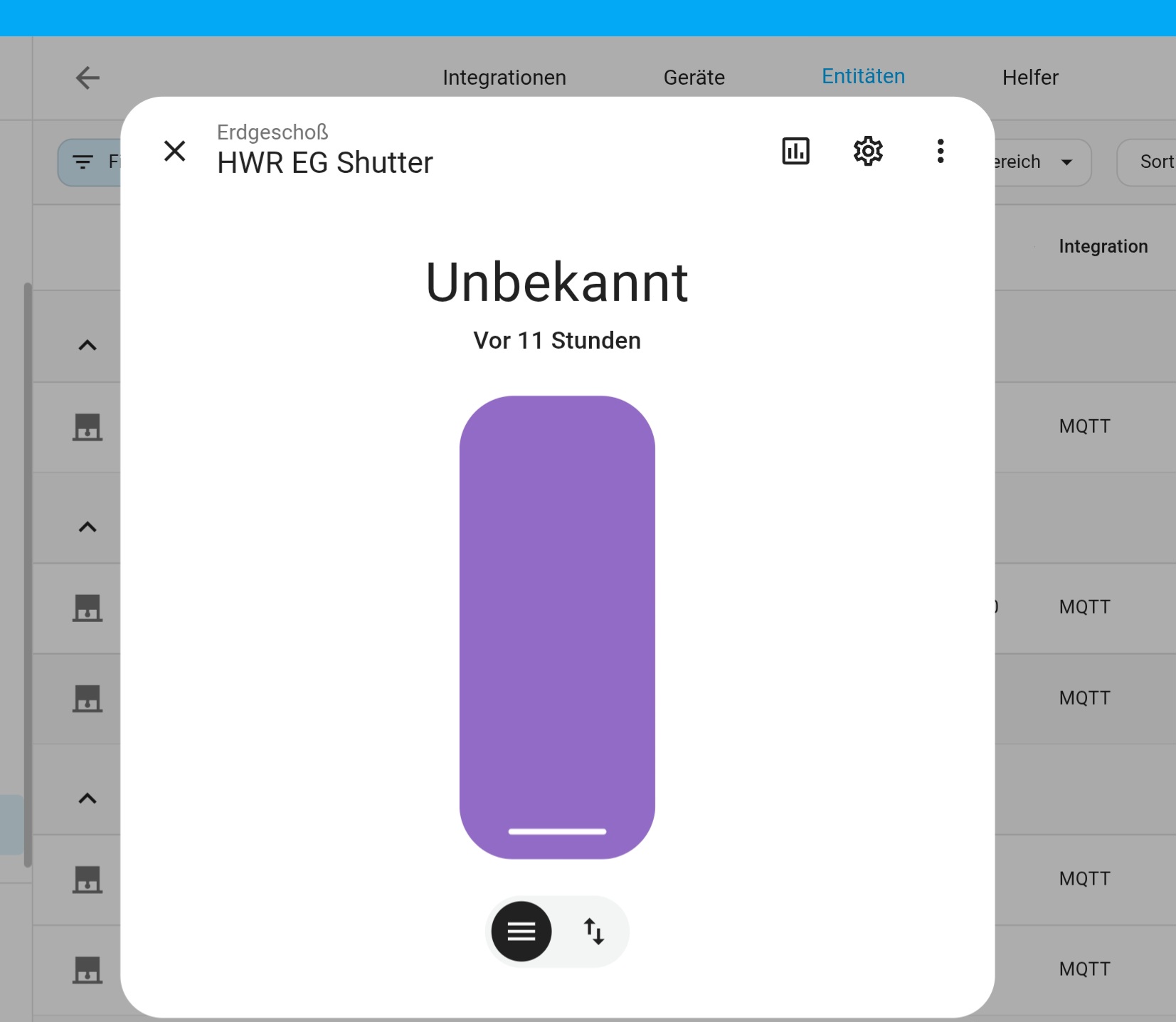

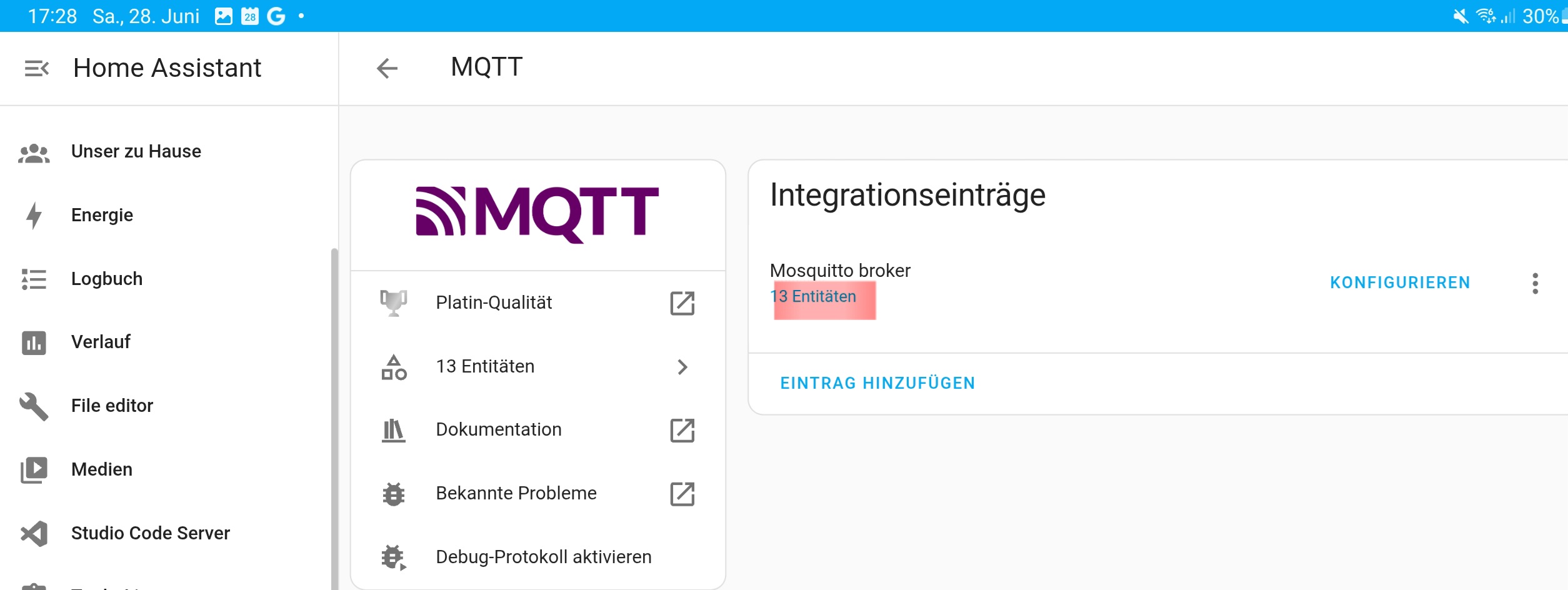

All 14 Shutter switches are online in Homeassistant.
Some differences in the configuration. yaml!
But now it runs and the first automation is also working.

Thanks for the first ideas of a solution.

Here the text in my configuration:
The first four switches from smartercurry!

mqtt:
cover:
- name: "yamlShutter"
unique_id: "yamlShutterId"
qos: 1
command_topic: "cmnd/West-Wohnzimmer-Shutter/tuyasend4"
payload_open: "1,0"
payload_close: "1,2"
payload_stop: "1,1"
set_position_topic: "cmnd/West-Wohnzimmer-Shutter/shutterposition"
set_position_template: "{{value}}"
position_topic: "stat/West-Wohnzimmer-Shutter/RESULT"
position_template: "{{value_json.Shutter1.Position}}"
availability_topic: "tele/West-Wohnzimmer-Shutter/LWT"
payload_available: "Online"
payload_not_available: "Offline"

- name: "yamlShutte1"
unique_id: "yamlShutter1Id"
qos: 1
command_topic: "cmnd/Büro_1.OG_Shutter/tuyasend4"
payload_open: "1,0"
payload_close: "1,2"
payload_stop: "1,1"
set_position_topic: "cmnd/Büro_1.OG_Shutter/shutterposition"
set_position_template: "{{value}}"
position_topic: "stat/Büro_1.OG_Shutter/RESULT"
position_template: "{{value_json.Shutter1.Position}}"
availability_topic: "tele/Büro_1.OG_Shutter/LWT"
payload_available: "Online"
payload_not_available: "Offline"

- name: "yamlShutte2"
unique_id: "yamlShutter2Id"
qos: 1
command_topic: "cmnd/Süd_West_Wohnzimmer_Shutter/tuyasend4"
payload_open: "1,0"
payload_close: "1,2"
payload_stop: "1,1"
set_position_topic: "cmnd/Süd_West_Wohnzimmer_Shutter/shutterposition"
set_position_template: "{{value}}"
position_topic: "stat/Süd_West_Wohnzimmer_Shutter/RESULT"
position_template: "{{value_json.Shutter1.Position}}"
availability_topic: "tele/Süd_West_Wohnzimmer_Shutter/LWT"
payload_available: "Online"
payload_not_available: "Offline"

- name: "yamlShutte3"
unique_id: "yamlShutter3Id"
qos: 1
command_topic: "cmnd/Süd_Süd-West_Wohnzimmer_Shutter/tuyasend4"
payload_open: "1,0"
payload_close: "1,2"
payload_stop: "1,1"
set_position_topic: "cmnd/Süd_Süd-West_Wohnzimmer_Shutter/shutterposition"
set_position_template: "{{value}}"
position_topic: "stat/Süd_Süd-West_Wohnzimmer_Shutter/RESULT"
position_template: "{{value_json.Shutter1.Position}}"
availability_topic: "tele/Süd_Süd-West_Wohnzimmer_Shutter/LWT"
payload_available: "Online"
payload_not_available: "Offline"

- name: "yamlShutte4"
unique_id: "yamlShutter4Id"
qos: 1
command_topic: "cmnd/Süd_Süd-Ost_Wohnzimmer_Shutter/tuyasend4"
payload_open: "1,0"
payload_close: "1,2"
payload_stop: "1,1"
set_position_topic: "cmnd/Süd_Süd-Ost_Wohnzimmer_Shutter/shutterposition"
set_position_template: "{{value}}"
position_topic: "stat/Süd_Süd-Ost_Wohnzimmer_Shutter/RESULT"
position_template: "{{value_json.Shutter1.Position}}"
availability_topic: "tele/Süd_Süd-Ost_Wohnzimmer_Shutter/LWT"
payload_available: "Online"
payload_not_available: "Offline"

[scarver]

All is fine now!

mqtt:
cover:
- name: "yamlShutter"
unique_id: "yamlShutterId"
qos: 1
command_topic: "cmnd/West-Wohnzimmer-Shutter/tuyasend4"
payload_open: "1,0"
payload_close: "1,2"
payload_stop: "1,1"
set_position_topic: "cmnd/West-Wohnzimmer-Shutter/shutterposition"
set_position_template: "{{value}}"
position_topic: "stat/West-Wohnzimmer-Shutter/RESULT"
position_template: "{{value_json.Shutter1.Position}}"
availability_topic: "tele/West-Wohnzimmer-Shutter/LWT"
payload_available: "Online"
payload_not_available: "Offline"

- name: "yamlShutte1"
unique_id: "yamlShutter1Id"
qos: 1
command_topic: "cmnd/Büro_1.OG_Shutter/tuyasend4"
payload_open: "1,0"
payload_close: "1,2"
payload_stop: "1,1"
set_position_topic: "cmnd/Büro_1.OG_Shutter/shutterposition"
set_position_template: "{{value}}"
position_topic: "stat/Büro_1.OG_Shutter/RESULT"
position_template: "{{value_json.Shutter1.Position}}"
availability_topic: "tele/Büro_1.OG_Shutter/LWT"
payload_available: "Online"
payload_not_available: "Offline"

- name: "yamlShutte2"
unique_id: "yamlShutter2Id"
qos: 1
command_topic: "cmnd/Süd_West_Wohnzimmer_Shutter/tuyasend4"
payload_open: "1,0"
payload_close: "1,2"
payload_stop: "1,1"
set_position_topic: "cmnd/Süd_West_Wohnzimmer_Shutter/shutterposition"
set_position_template: "{{value}}"
position_topic: "stat/Süd_West_Wohnzimmer_Shutter/RESULT"
position_template: "{{value_json.Shutter1.Position}}"
availability_topic: "tele/Süd_West_Wohnzimmer_Shutter/LWT"
payload_available: "Online"
payload_not_available: "Offline"

And so on!
Und so weiter!
